Stress Testing GCP CM via ServiceAPI and jmeter

Let's see how my GCP hosted CM infrastructure holds up under ridiculous load.

jmeter can be downloaded here.  Since this is a pure Java application you'll need to have java installed (I'm using JRE 9 but most should use JDK 8 here).  Note that JDK v10 is not yet officially supported.

After extracting jmeter you launch it by executing jmeter.bat...

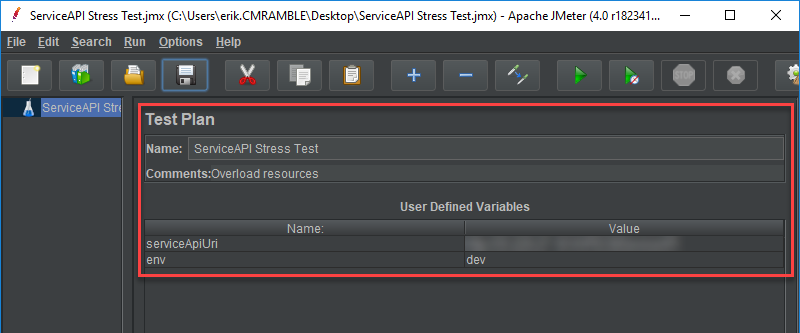

Every test plan should have a name, description, and a few core variables...

There are many, many possible ways to build out a test plan.  Each will have at least one thread group though, so I'll start by creating just one.


As shown below, I created a thread group devoted to creating folders.  I also set error action to stop test.  Later I'll come back and increase the thread properties, but for now I only want one thread so that I can finish the configuration.

Next I'll add an HTTP Request Sampler, as shown below...


The sampler is configured to submit a Json record definition, with values for Title and Record Type.  This is posted to the ServiceAPI end-point for records.  It's as basic as you can get!

I'll also need an HTTP Header Manager though, so that the ServiceAPI understands I'm intending to work with json data.


Last, I'll add a View Results Tree Listener, like so...


Now I can run the test plan and review the results...


After fixing the issue with my json (I used "RecordRecordTitle" instead of "RecordTypedTitle"), I can run it again to see success.


Now I'll disable the view results tree, add a few report listeners, and ramp up the number of threads to 5.  Each thread will submit 5 new folders.  With that I can see the average throughput.


Next I'll increase the number of folders, tweak the ramp-up period, and delay thread creation until needed.  Then I run it and can review a the larger sample set.


This is anecdotal though.  I need to also monitor all of the resources within the stack.  For instance, as shown below, I can see the impact of that minor load on the CPU of the workgroup server.  I'd want to also monitor the workgroup server(s) RAM, disk IO, network IO, and event logs.  Same goes for the database server and any components of the stack.


From here the stress test plan could include logic to also create documents within the folders, run complex searches, or perform actions.  There are many other considerations before running the test plan, such as: running the plan via command line instead of GUI, scheduling the plan across multiple workstations, calculating appropriate thread count/ramp-up period based on infrastructure, and chaining multiple HTTP requests to more aptly reflect end-user actions.

For fun though I'm going to create 25,000 folders and see what happens!


Ensuring Records Managers can access Microstragegy

I've got a MicroStragtegy server environment with a Records Management group.  I'd like to ensure that certain new CM users always have access to MSTR, so that they have appropriate access to dashboards and reports.  For simplicity of the post I'll focus just on CM administrators.

Within MicroStrategy I'd like to create a new user and include them in a "Records Management" group, like so:


This implementation of MSTR does not have an instance of the REST API available, so I'm limited to using the command manager.  My CM instance is in the cloud and I won't be allowed to install the CM client on the MSTR server.  To bridge that divide I'll use a powershell script that leverages the ServiceAPI and Invoke-Expression cmdlet.

First I need a function that gets me a list of CM users:

function Get-CMAdministrators {
    Param($baseServiceApiUri)
    $queryUri = ($baseServiceApiUri + "/Location?q=userType:administrator&pageSize=100000&properties=LocationLogsInAs,LocationLoginExpires,LocationEmailAddress,LocationGivenNames,LocationSurname")
    $AllProtocols = [System.Net.SecurityProtocolType]'Ssl3,Tls,Tls11,Tls12'
    [System.Net.ServicePointManager]::SecurityProtocol = $AllProtocols
    $headers = @{
        Accept = "application/json"
    }
    $response = Invoke-RestMethod -Uri $queryUri -Method Get -Headers $headers -ContentType "application/json"
    Write-Debug $response
    if ( $response.TotalResults -gt 0 ) {
        return $response.Results
    }
    return $null
}

Second I need a function that creates a user within MSTR:

function New-MstrUser {
    Param($psn, $psnUser, $psnPwd, $userName,$fullName,$password,$group)
    $command = "CREATE USER `"$userName`" FULLNAME `"$fullName`" PASSWORD `"$password`" ALLOWCHANGEPWD TRUE CHANGEPWD TRUE IN GROUP `"$group`";"
    $outFile = ""
    $logFile = ""
    try {
        $outFile = New-TemporaryFile
        Add-Content -Path $outFile $command
        $logFile = New-TemporaryFile
        $cmdmgrCommand = "cmdmgr -n `"$psn`" -u `"$psnUser`" -f `"$outFile`" -o `"$logFile`""
        iex $cmdmgrCommand
    } catch {

    }
    if ( (Test-Path $outFile) ) { Remove-Item $outFile -Force }
    if ( (Test-Path $logFile) ) { Remove-Item $logFile -Force }
}

Last step is to tie them together:

$psn = "MicroStrategy Analytics Modules"
$psnUser = "Administrator"
$psnPwd = ""
$recordsManagemenetGroupName = "Records Management"
$baseUri = "http://10.0.0.1/HPECMServiceAPI"
$administrators = Get-CMAdministrators -baseServiceApiUri $baseUri
if ( $administrators -ne $null ) {
    foreach ( $admin in $administrators ) {
        New-MstrUser -psn $psn -psnUser $psnUser -psnPwd $psnPwd -userName $admin.LocationLogsInAs.Value -fullName ($admin.LocationSurName.Value + ', ' + $admin.LocationGivenNames.Value) -password $admin.LocationLogsInAs.Value -group $recordsManagemenetGroupName
    }
}

After running it, my users are created!


Using GCP to alert CM administrators when things break

It's crazy how simple it is to set this up within GCP.  You can even do this with your internally hosted CM servers (assuming you don't mind log shipping to your super secure private cloud)!  In a previous post I installed Stackdriver on my VM and showed how the logs appear within the UI.

I dare say a majority of the times CM breaks an error entry is generated within the application log.  Stackdriver is sending me those entries. As shown below, here's an entry from CM stemming from me having (purposefully) moved a document store.




Similar entries will be generated when the database goes down, document stores are full, and when IIS resets on me.  More importantly, it's super easy to push TRIMWorkgroup log file entries into the event logs.  Also, many integrations can have their log4net logging mechanisms redirected to the event logs!!!!

From the logging interface I can select Logs-Based metrics on the left and then click Create Metric...




Next I gave it an easy to understand name and a set of filters that drill down to just the errors from the workgroup service.  More advanced filters can be defined so that more (or less) is included.  This serves my purposes for now.




After hitting save, I can select Create Alert from Metric....




Here I just need to provide an interval which would trigger the alert...




Once that's saved I can configure one or more notifications.  Here I'm sending an email, but options exist for text, slack channel post, or smoke signal.  Pretty slick.




After it was all saved I went and triggered an error by trying to open one of those missing documents.  Look what I got via email about a minute later!




Time to start cranking out preset filters for customers!
